¡Oferta!

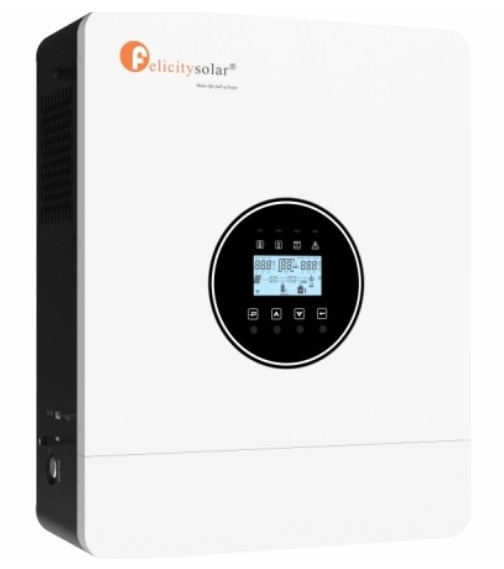

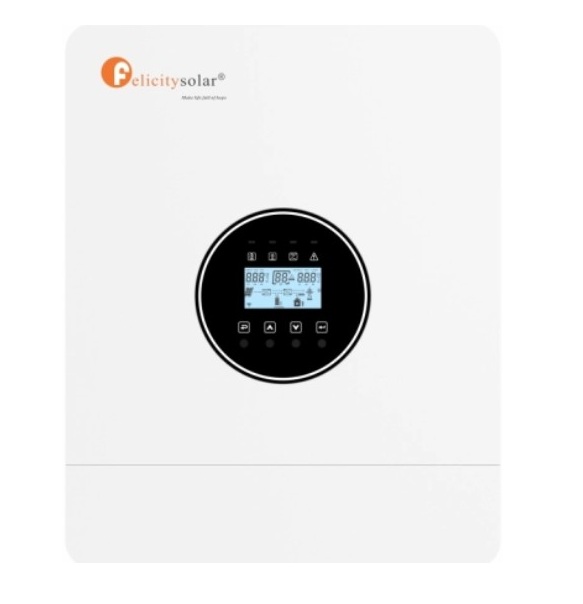

Inversor de 6000W MPPT- Híbrido 48 Volts – FS

El precio original era: $690.000.El precio actual es: $524.790. Iva incluido

Disponibilidad: 10 disponibles


Model	IVEM6048
Rated Output Power	6000VA
Rated Output Power	6000W
Nominal DC Input Voltage	48V
Input Voltage Waveform	Sinusoidal (utility or generator)
Nominal Input Voltage	230Vac
Low Line Voltage Disconnect	170Vac±7V(UPS); 90Vac±7V(Appliances)
Low Loss Voltage Re-connect	180Vac±7V (UPS); 100Vac±7V(Appliances)
High Line Voltage Disconnect	280Vac±7V
High Line Voltage Re-connect	270Vac±7V
Max AC Input Voltage	280Vac
Nominal Input Frequency	50Hz / 60Hz(Auto detection)
Low Line Frequency Disconnect	40±1Hz
Low Line Frequency Re-connect	42±1Hz
High Line Frequency Disconnect	65±1Hz
High Line Frequency Re-connect	63±1Hz
Output Voltage Waveform	As same as input waveform
Output Short Circuit Protection	Line mode:Circuit Breaker Battery mode:Electronic Circuits
Efficiency (Line Mode)	>95% (Rated R load, battery full charged)
Transfer Time(Single unit)	10ms typical (UPS);20ms typical (Appliances)
Transfer Time(Parallel)	50ms typical
Pass Through Without Battery	Yes
Max. Bypass Overload Current	40A
Max.Inverter / Rectifier Current	40A / 6000W

Utility Charge Mode Specifications
Nominal Input Voltage	230Vac
Input Voltage Range	90~280Vac
Nominal Output Voltage	Dependent on battery type
Max. Charge Current	100A
Charge Current Regulation	10-100A (Adjustable unit is 1A)
Over Charge Protection	Yes
Solar Charging &Grid Charging
Max.PV Open Circuit Voltage	500V
PV Voltage Working Range	90V-450V
Max.Input Power	7500W
Max. Solar Charging Current	120A
Max. Charging Current (PV+Grid)	120A
Max. Input Current	27A
Min. Startup Voltage	95V
